Grafana Dashboards

DATA 503: Fundamentals of Data Engineering

Lucas P. Cordova, Ph.D.
lpcordova@willamette.edu

Willamette University

April 8, 2026

Learning objectives

  1. Place Grafana in the stack: read-only analytics over Postgres, not a replacement for ETL
  2. Explain why views and a read-only role are the right boundary for dashboard queries
  3. Outline the Railway template steps and key environment variables for a Grafana service
  4. Contrast the dashboard-service setup steps with the addendum: operational data vs Grafana metadata, persistence, and public URLs

Course connection: This is the serving layer: curated SQL becomes charts and tables stakeholders can refresh without touching pipelines.

Views

What a view is

A view is a named SELECT stored in the catalog. Clients read it like a table, but it does not duplicate rows on disk unless you use a materialized view.

For dashboards, views are the usual contract: one stable name, one definition of joins and aggregates, reused by Grafana and by anyone running SQL.

Same dataset as the Salem 13 SLM track

The 13-1 Advanced Queries (SLM) deck restores class_dbs (local or Railway) with Census, business, temperature, and survey tables. After restore, you can CREATE OR REPLACE VIEW objects that match the analytical questions you want charts to answer.

The named views below are the same dashboard-ready definitions used in the full Dashboards with Grafana (13-2) lecture. They are intentionally shaped for bar charts, tables, and grouped comparisons.

Base tables (after restore)

Table Role
us_counties_pop_est_2019 County population and migration components
cbp_naics_72_establishments Food and accommodation establishments by area
temperature_readings Daily readings for weather stations
ice_cream_survey Long-format survey responses

Catalog of curated views

View Idea Panel-friendly shape
v_state_population_summary State totals and natural increase Sorted bars, tables
v_state_migration_rates Net migration per thousand + direction label Horizontal bar, color by category
v_county_growth_summary Counties grouped by growth category Pie, stat
v_state_estabs_per_capita NAICS 72 establishments per thousand residents Ranked bars
v_seasonal_temperatures Avg temps by station and season Grouped bar
v_population_tiers Metro to rural tiers Table, shares

Example: v_state_population_summary

State-level aggregates from county rows. Natural bar or table panels.

CREATE OR REPLACE VIEW v_state_population_summary AS
SELECT
    state_name,
    count(*) AS num_counties,
    sum(pop_est_2019) AS total_pop,
    round(avg(pop_est_2019), 0) AS avg_county_pop,
    sum(births_2019) AS total_births,
    sum(deaths_2019) AS total_deaths,
    sum(births_2019) - sum(deaths_2019) AS natural_increase
FROM us_counties_pop_est_2019
GROUP BY state_name
ORDER BY total_pop DESC;

Example: v_state_migration_rates

Adds a CTE, a rate per thousand, and a CASE label for color or legend splits in Grafana.

CREATE OR REPLACE VIEW v_state_migration_rates AS
WITH state_migration AS (
    SELECT
        state_name,
        sum(international_migr_2019 + domestic_migr_2019) AS net_migration,
        sum(pop_est_2018) AS base_pop
    FROM us_counties_pop_est_2019
    GROUP BY state_name
)
SELECT
    state_name,
    base_pop,
    net_migration,
    round((net_migration / base_pop::numeric) * 1000, 2) AS migration_rate_per_thousand,
    CASE
        WHEN net_migration > 0 THEN 'Gaining'
        WHEN net_migration < 0 THEN 'Losing'
        ELSE 'Stable'
    END AS migration_direction
FROM state_migration
ORDER BY migration_rate_per_thousand DESC;

Full SQL for the other catalog views appears in 13-2 Dashboards. Grant SELECT on these views to a read-only role, not necessarily every base table.

Where Grafana sits

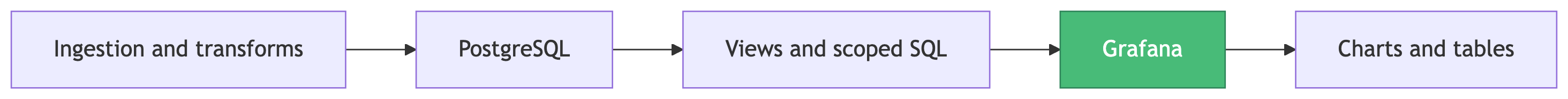

Pipeline role

Grafana reads your database (usually through views). It does not run your batch jobs.

Two different uses of Postgres

Database role What lives there
Pipeline / analytics Facts, dimensions, views you chart
Grafana app config (optional) Dashboard JSON, users, data source definitions

Keeping those separate means you can reload pipeline data without wiping dashboard UI work, once Grafana is configured to store metadata in its own database (addendum).

Reading: dashboard-service

What that page is for

The dashboard-service write-up is a checklist from “data in Postgres” to “first live panels”:

  • Introduce views as the stable interface for visualization (hide joins, control permissions)
  • Deploy Grafana on Railway from a template
  • Lock down access with a Grafana-specific database user
  • Register PostgreSQL as a Grafana data source and build a first dashboard

That checklist assumes you already publish views (or tightly scoped queries) as the Grafana-facing surface, as in the Views section above.

Add Grafana from a Railway template (high level)

These steps match the template-based path in the reading (search the template gallery for Grafana, often published under community profiles such as Andre Lademann):

  1. In your Railway project: Create then Template
  2. Search for Grafana and select the template your materials reference
  3. Set the admin credentials and any template-required variables, then Deploy

Environment variables (template checklist)

The reading suggests variables along these lines (exact names may match your template’s prompts):

Key Purpose
GF_SECURITY_ADMIN_USER Initial Grafana admin username
GF_SECURITY_ADMIN_PASSWORD Initial Grafana admin password
GF_DEFAULT_INSTANCE_NAME Friendly name for the instance (if the template asks)

Leave template defaults for unrelated keys unless the template docs say otherwise. After variables validate, deploy and wait until the service is healthy.

Serverless on Grafana

After deploy, in Grafana Settings, enable Serverless if your platform offers it so the service sleeps when idle and wakes on demand. Useful for class projects with periodic use.

Least-privilege database user

In Postgres, create a user that can only read what dashboards need (often SELECT on specific views):

  • CREATE USER ...
  • GRANT USAGE ON SCHEMA public ...
  • GRANT SELECT ON the view (or views), not carte blanche on all tables if you can avoid it

Connect Grafana to Postgres (high level)

  1. From Railway, copy connection details: host, port, database name (often railway), and credentials
  2. In Grafana: Connections then Data sources then PostgreSQL
  3. Fill host, database, user, password; use the SSL mode Railway documents for your endpoint (internal vs public hostnames differ)
  4. Save and test

First dashboard (no demo here)

At a high level: Home then create a dashboard, add visualization, pick the PostgreSQL source, choose a table or view, map time and value fields, run query, pick a visualization. The full Lecture 13-2 deck walks panels step by step.

Reading: dashboard-service addendum

Why an addendum exists

Out of the box, Grafana may store state in a way that does not survive redeploys the way you expect on a PaaS. The addendum addresses two goals:

  1. Persistence: Store Grafana’s own configuration (dashboards, users, data source records) in PostgreSQL
  2. Sharing: Serve Grafana at a stable public URL and use Grafana’s share features for read-only links

Before you change storage

If you already built dashboards in a non-persistent setup, export dashboards (and optionally settings) as JSON before switching backends so you can re-import.

Addendum steps (high level)

  1. Create a dedicated database on your Railway Postgres instance (commonly named grafana) for Grafana metadata only
  2. Set Grafana environment variables so it uses Postgres as its database, for example:
    • GF_DATABASE_TYPE=postgres
    • GF_DATABASE_HOST (often the internal host and port from Railway when Grafana runs in the same project)
    • GF_DATABASE_NAME=grafana
    • GF_DATABASE_USER / GF_DATABASE_PASSWORD (service credentials from Postgres)
    • GF_DATABASE_SSL_MODE (often disable for internal Railway networking, or require if you use the public endpoint; follow Railway’s connector docs)
    • GF_SERVER_ROOT_URL set to your Grafana public HTTPS URL (from the Deployments tab)
  3. Redeploy or restart Grafana
  4. Verify: create a test dashboard, restart Grafana, confirm the dashboard still exists
  5. Public link: use Grafana’s Share then External link flow if you need a link that works outside your account (understand the security implications)

Idea: Pipeline data stays in your main database; the grafana database holds only Grafana’s application state.

Summary

Topic Takeaway
Views Named SELECT on class_dbs; catalog in Views section, full set in 13-2
Template deploy Railway Create then Template then Grafana, then configure admin env vars and deploy
Security Read-only DB user scoped to views or minimal schema access
Data source PostgreSQL connector in Grafana with correct host and SSL mode for your network path
Addendum Separate grafana database and GF_DATABASE_* (plus GF_SERVER_ROOT_URL) for persistent Grafana and stable public access

References

  1. Grafana documentation
  2. Grafana PostgreSQL data source
  3. Railway documentation
  4. Course lecture: Dashboards with Grafana (13-2)
  5. PostgreSQL CREATE VIEW
  6. SLM restore context: Advanced Query Techniques (13-1 SLM)
